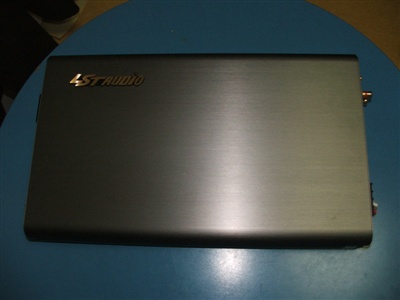

LST NEW 800.1입니다.
Connector Complement:
Two RCA input connector
One high-current DC Power connector
Frequency Response : Within -1dB from 20Hz to 20kHz
Crossover Alignment: Linkwitz-Riley/Proprietary 2th-order/4th-order state-variable
Crossover Slopes: 12/24 dB per Octave
Crossover Range: 30~300kHz
Input Impedence: 20kohm
Input Voltage Response: 0.25~5V (full-rated output)
Mains Voltage: Dc 10.5~15V
Power Consumption: Max78A in idle, 2.5A in standby
Rated Power Output : rms 550 W at 4ohms(mono)
rms 800 W at 2ohms(mono)
All of the above power ratings were measured as continuous (rms) power from 20Hz - 20kHz with no more than 0.02% THD
Line Inputs : 2 per channels Inputs
Line Outputs :
Line Outputs : 380mm(W) * 230mm(D) * 58mm(H)
Signal to Noise Ratio : -102dB
Voltage Gain : 28dB
Connector Complement:
Two RCA input connector
One high-current DC Power connector
Frequency Response : Within -1dB from 20Hz to 20kHz
Crossover Alignment: Linkwitz-Riley/Proprietary 2th-order/4th-order state-variable
Crossover Slopes: 12/24 dB per Octave
Crossover Range: 30~300kHz
Input Impedence: 20kohm
Input Voltage Response: 0.25~5V (full-rated output)
Mains Voltage: Dc 10.5~15V
Power Consumption: Max78A in idle, 2.5A in standby
Rated Power Output : rms 550 W at 4ohms(mono)
rms 800 W at 2ohms(mono)
All of the above power ratings were measured as continuous (rms) power from 20Hz - 20kHz with no more than 0.02% THD
Line Inputs : 2 per channels Inputs
Line Outputs :
Line Outputs : 380mm(W) * 230mm(D) * 58mm(H)
Signal to Noise Ratio : -102dB
Voltage Gain : 28dB
