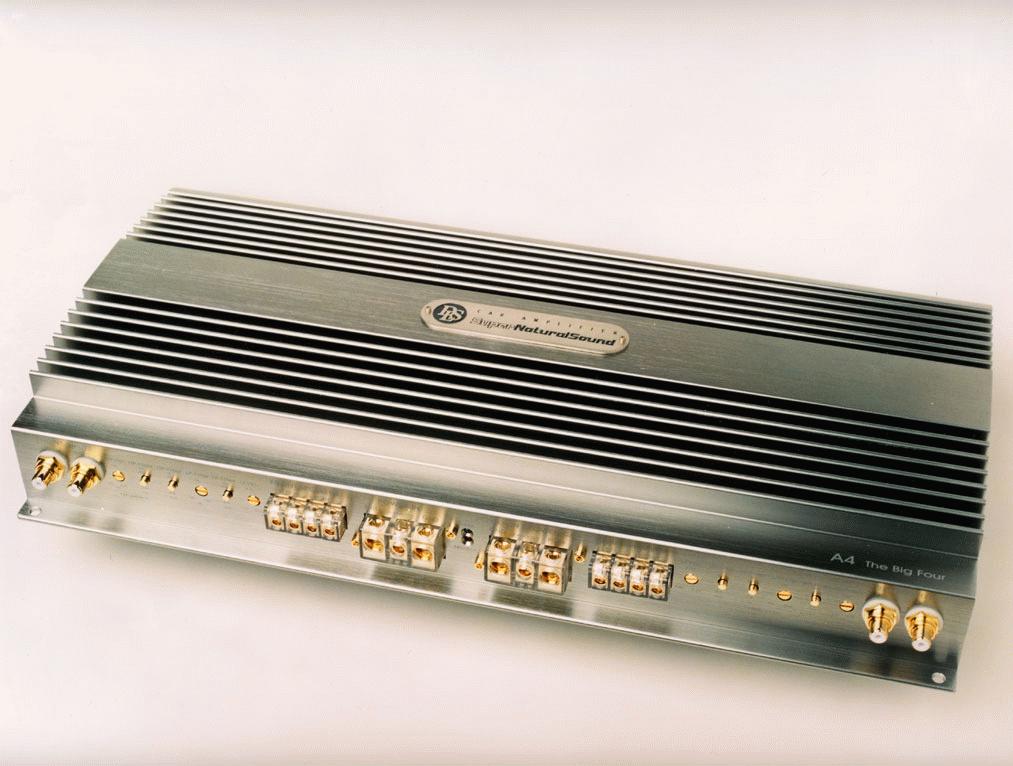

4체널 하이엔드 앰프 DLS A4
스펙을 훨씬 웃도는 구동력이 있는 앰프로
뉘앙스, 발란스, 파워, 구동력 모두 만족할 수 있는 앰프라 생각됩니다.
RMS output per channel at 13,8 volts, 20 Hz - 20 kHz , < 0,1% distortion.
Mode : AB
Number of channels : 4
Output power in 4 ohm : 4 x 85 W
Output power in 2 ohm : 4 x 145 W
Output power in 1 ohm : 4 x 220 W
Output power in 4 ohm bridge mode : 2 x 250 W
Output power in 2 ohm bridge mode : 2 x 400 W
S / N ratio, A-weighted : > 100 dB
Damping factor : > 200
Input impedance : > 10 kohm
Input sensitivity, variable : 0,2 - 7 V
Filter front channels : Lowpass: 50-125 Hz. Highpass: 20-200 Hz / 60-600 Hz
Filter rear channels : Lowpass: 45-200 Hz / 90-400 Hz. Highpass: 20-200 Hz
Terminal for external cooling fan : Yes
Dual DC-inputs : Yes
Current draw, idle : 1,5 A
Current draw, maximum : 95 A
Dimensions W x D x H : 465 x 240 x 73 mm (18,30 x 9,45 x 2,87 inch)
Weight : 6,6 kg ( 14,55 lb)
스펙을 훨씬 웃도는 구동력이 있는 앰프로
뉘앙스, 발란스, 파워, 구동력 모두 만족할 수 있는 앰프라 생각됩니다.
RMS output per channel at 13,8 volts, 20 Hz - 20 kHz , < 0,1% distortion.
Mode : AB
Number of channels : 4
Output power in 4 ohm : 4 x 85 W
Output power in 2 ohm : 4 x 145 W
Output power in 1 ohm : 4 x 220 W
Output power in 4 ohm bridge mode : 2 x 250 W
Output power in 2 ohm bridge mode : 2 x 400 W
S / N ratio, A-weighted : > 100 dB
Damping factor : > 200
Input impedance : > 10 kohm
Input sensitivity, variable : 0,2 - 7 V
Filter front channels : Lowpass: 50-125 Hz. Highpass: 20-200 Hz / 60-600 Hz
Filter rear channels : Lowpass: 45-200 Hz / 90-400 Hz. Highpass: 20-200 Hz
Terminal for external cooling fan : Yes
Dual DC-inputs : Yes
Current draw, idle : 1,5 A
Current draw, maximum : 95 A
Dimensions W x D x H : 465 x 240 x 73 mm (18,30 x 9,45 x 2,87 inch)
Weight : 6,6 kg ( 14,55 lb)
