ARC 2075SE 2채널앰프
아르고
0
4007
0
0
2008.08.16 17:45

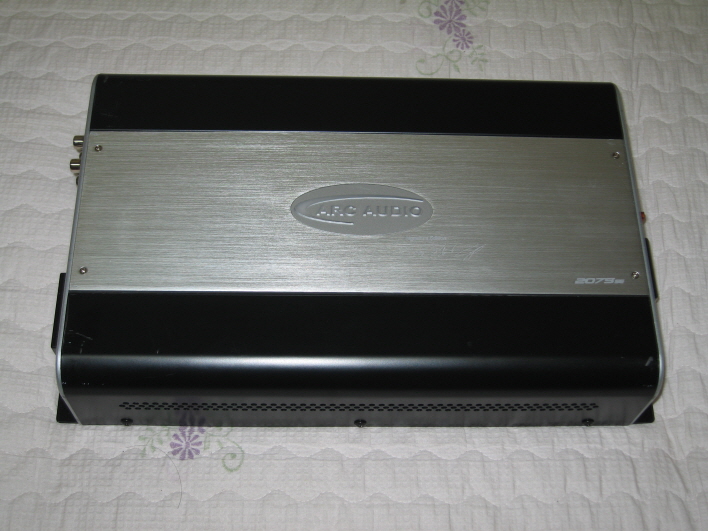

ARC 2075SE 앰프입니다.
cxl(신형xxk)모델보다 상위라인으로 알고 있습니다.
2 Channels @ 40hms 100 Watts 24A
2 Channels @ 20hms 175 Watts 46A
2 Channels @ 10hms 150 Watts 50A
1 Channels @ 80hms 200 Watts 24A
1 Channels @ 40hms 350 Watts 47A
1 Channels @ 20hms 300 Watts 50A
Frequency Response 4 Hz > 50kHz
Crossover Range 30Hz - 550Hz (x10 300HZ - 5500Hz)
Bass Boost 0 - 15dB @ 20Hz - 80 Hz
S/N Ratio (a wtg) ref 1Wall 40hm >88 dB
Seperation @ 1kHz >70 dB
Dampeninig (25W 2x40hm 100Hz) >2500
Low Level Imput Sensitivity .3v - 4v
Balanced Input Sensitivity .6v - 8v
High Level Input NA
Max Peak Current 20hm Mono 70A @ 571Watts 20% THD+ N
Efficiency at rated 2ohm Stereo 52%
Idle Current 1.14A
Dimensions 13 "(L) X 8"(W) X 21/2 "(H)
2 Channels @ 20hms 175 Watts 46A
2 Channels @ 10hms 150 Watts 50A
1 Channels @ 80hms 200 Watts 24A
1 Channels @ 40hms 350 Watts 47A
1 Channels @ 20hms 300 Watts 50A
Frequency Response 4 Hz > 50kHz
Crossover Range 30Hz - 550Hz (x10 300HZ - 5500Hz)
Bass Boost 0 - 15dB @ 20Hz - 80 Hz
S/N Ratio (a wtg) ref 1Wall 40hm >88 dB
Seperation @ 1kHz >70 dB
Dampeninig (25W 2x40hm 100Hz) >2500
Low Level Imput Sensitivity .3v - 4v
Balanced Input Sensitivity .6v - 8v
High Level Input NA
Max Peak Current 20hm Mono 70A @ 571Watts 20% THD+ N
Efficiency at rated 2ohm Stereo 52%
Idle Current 1.14A
Dimensions 13 "(L) X 8"(W) X 21/2 "(H)
