6CD / 라디오 / 엠디 / AUX 등
나까미치 MB-100 과 비슷한지만 2din 이라는 점과
MD가 추가된 점 그리고, 컨버터가 내장이라는 점이
다르네요.

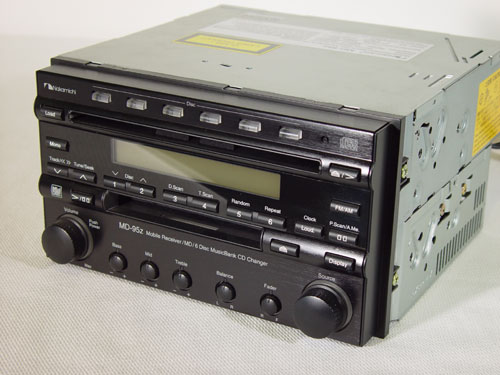

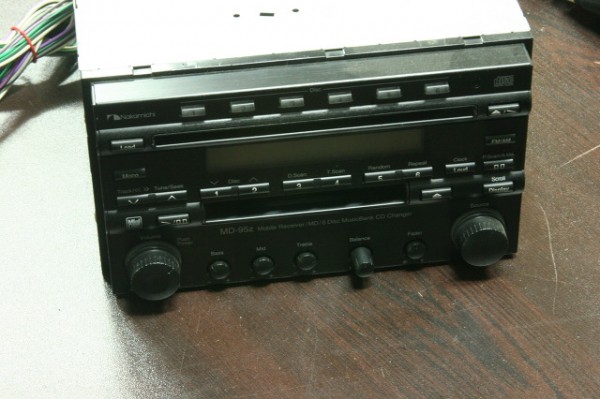

Mobile Receiver / MD Player
(MD-95z Not Available in USA)
Designed to fit into a Double-DIN dash opening, the MD-95z provides state-of-the-art performance for both MD and CD formats in one chassis. By combining a 6-disc MusicBank™ CD changer mechanism, MD playback transport, high power amplifier and an AM/FM tuner, convenience, versatility and sonic excellence can be realized by the mobile audiophile.
6-Disc MusicBank™ CD Changer Mechanism / Single MD Transport
The MD-95z's direct-loading CD mechanism makes in-car multi-disc CD playback simple and easy. 6-compact discs can be loaded one after the other without the use of a cartridge or magazine. The MusicBank™ mechanism handles each disc gently and precisely by its edges, without ever touching the playing surface.
A high-precision MD transport ensures that every delicate nuance of music is recovered from your prerecorded or home-recorded mini discs.
High Resolution 24-Bit D/A Converters
The MD-95z employs an ultra high-resolution 24-bit D/A converter to deliver extraordinary musicality for both MD and compact disc playback. The results are tight, well defined bass with clear, detailed midrange and high frequency response.
4-Gang Analog Volume Control
Building on the Nakamichi tradition of sonic excellence, much care has been taken to preserve the audio signals integrity and musical accuracy from the 24-bit D/A converter. By employing an analog volume control, precise level adjustment without harmonic degradation is possible. For the same reasons, bass, mid and treble controls also operate in the analog mode.
Superior Audio Circuitry and Robust Power Supply
The combination of high-performance digital and analog circuitry for the pre-amplifier, power amplifier and power supply makes it possible to amplify the audio signals without adding even the slightest amount of distortion or coloration. This approach provides ample headroom for the proper reproduction of the music's purity and dynamic range.
43 W X 4 Power Amplifier / 4-Channel Non-Fade Pre-Outputs
Ample, clean audio output is available to drive virtually any mobile speaker system with ease. System expansion using external amplification is possible via the four-channel, non-fade pre-amp outputs, delivering a powerful 4 volt output to the amplifier. A pair of subwoofer outputs are also provided.
Other Features
External MusicBank™ CD changer control capability
30 AM/FM presets
Aluminum front panel eliminates spurious interference
AUX input for an external audio source
Digital quartz clock
(For European & Asian Models)
SPECIFICATIONS
CD-MD Section
Sampling Rate 44.1 kHz
D/A Converter Type 24-bit / 8-times oversampling digital filter
Frequency Response 20 - 20 kHz ±1 dB
Signal-to-Noise Ratio 95 dB
Dynamic Range 95 dB
Total Harmonic Distortion 0.005%
FM Tuner Section
Frequency Range 87.5 - 108.0 MHz in 50 kHz steps
Usable Sensitivity 15 dBf (IHF)
Signal-to-Noise Ratio 60 dB (Mono)
Stereo Separation 35 dB at 1 kHz
Antenna Impedance 75 ohms (Unbalanced)
AM Tuner Section
Frequency Range 531 - 1,602 kHz in 9 kHz steps
Usable Sensitivity 32 dBµ
Signal-to-Noise Ratio 45 dB
Amplifier Section
Maximum Power Output 43 W x 4 (4 ohms)
Frequency Response
AUX Pre-out 20 - 30,000 Hz ± 1 dB
AUX SW-out 20 - 20,000 Hz ± 1 dB
AUX Input Level / Impedance 1 V / 50 kohms
CDC Input Level / Impedance 1 V / 50 kohms
Total Harmonic Distortion 0.1% (4 ohms, 1 kHz, 3 W x 4)
Output Voltage 4 V
Tone Controls
Bass 20 Hz ±12 dB
Midrange 1 kHz ±9 dB
Treble 20 kHz ±6 dB
Loudness 100 Hz, + 8 dB (volume level 20)
General
Power Requirement 14.4 V DC, negative ground
(operable within 10.8 - 15.6 V)
Current Consumption 10.0 A max.
Installation Dimensions* 178 (W) x 100 (H) x 160 (D) mm
Outer Dimensions* 178 (W) x 95 (H) x 175(D) mm
Specifications and features subject to change without notice.
*Outer Dimensions do not include protruding parts.
