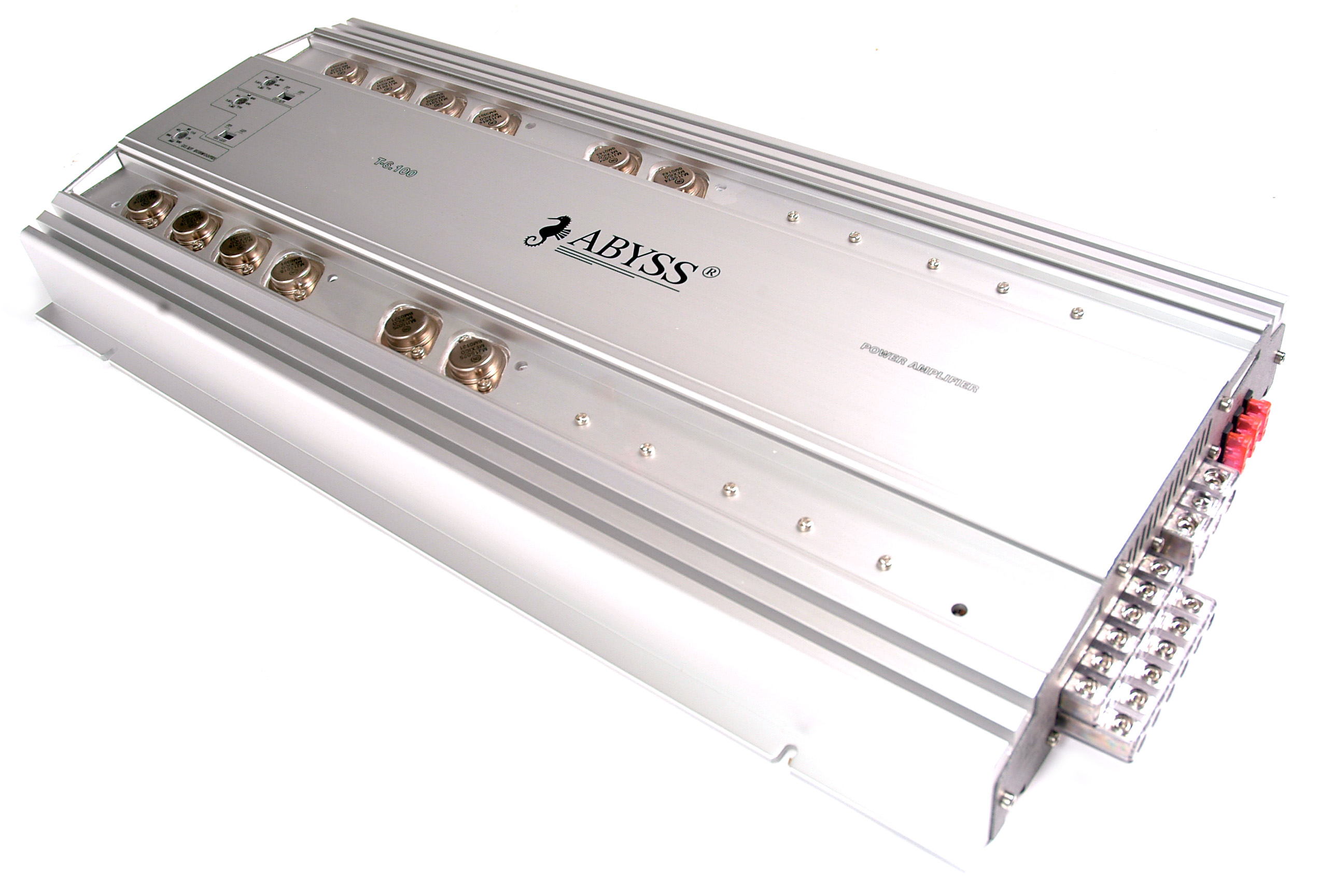

어비스 CT- 6.100 4채널앰프
아르고
0
3879
0
0
2008.11.08 17:17
POWER OUTPUT : 50W x 4CH INTO 4Ω(RMS)
100W x 4CH INTO 2Ω (RMS)
150W x 2CH BRIDGED MODE4Ω(RMS)
100W x 2CH INTO 4Ω (RMS)
200W x 2CH INTO 2Ω (RMS)
300W x 2CH BRIDGED MODE4Ω(RMS)
T.H.D : 0.05%
POWER BADWIDTH : 10HZ - 45KHZ @ ± 1dB
S/N RATIO : 100dB
INPUT SENS : 0.16V~4.0V(ADJUSTABLE)
POWER SUPPLY : DC+14.4V(11-16V USEABLE)
SUB WOOFER:43~63Hz@ -3dB(ADJUSTABLE)-24dB/OCT
HI-FILTER : 53~7.2KHz @ -3dB(ADJUSTABLE)-18dB/OCT
CAN TRANSISTOR
LIGHTING ILLUMINATION (BULE COLOR)
DAMPING FACTOR : >350
100W x 4CH INTO 2Ω (RMS)
150W x 2CH BRIDGED MODE4Ω(RMS)
100W x 2CH INTO 4Ω (RMS)
200W x 2CH INTO 2Ω (RMS)
300W x 2CH BRIDGED MODE4Ω(RMS)
T.H.D : 0.05%
POWER BADWIDTH : 10HZ - 45KHZ @ ± 1dB
S/N RATIO : 100dB
INPUT SENS : 0.16V~4.0V(ADJUSTABLE)
POWER SUPPLY : DC+14.4V(11-16V USEABLE)
SUB WOOFER:43~63Hz@ -3dB(ADJUSTABLE)-24dB/OCT
HI-FILTER : 53~7.2KHz @ -3dB(ADJUSTABLE)-18dB/OCT
CAN TRANSISTOR
LIGHTING ILLUMINATION (BULE COLOR)
DAMPING FACTOR : >350
