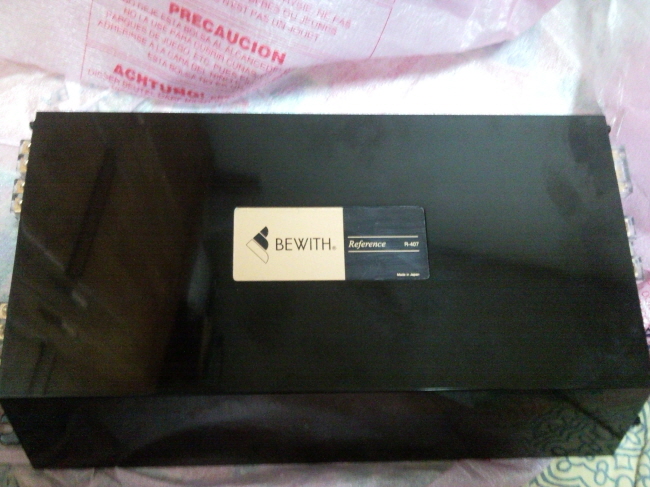

비위드 4CH 앰프 R-407
Power source 14.4V DC(11.0 ~ 15.0V allowable)
Continuous power output 70W × 4ch(14.4V 4Ω20 ~ 20,000Hz0.03THD)
110W × 4ch(14.4V 2Ω20 ~ 20,000Hz0.06THD)
185W × 2ch(14.4V 4Ω20 ~ 20,000Hz0.06THD)
Frequency response 10 ~ 40,000Hz(-1dB)
Signal to noise ratio 98dB
Load impedance 4Ω(Bridged connection 4 ~ 8Ω allowable)
Separation 75dB
Damping factor 272(4Ω100Hz)
Low pass filter 40 ~ 150Hz
Low pass cut off slope -12dBoct
Input level 0.2 ~ 6.0V
Fuse 50A × 1
Size ( W × D × H) 344 × 213 × 57 mm
Weight 4.15Kg
Power source 14.4V DC(11.0 ~ 15.0V allowable)
Continuous power output 70W × 4ch(14.4V 4Ω20 ~ 20,000Hz0.03THD)
110W × 4ch(14.4V 2Ω20 ~ 20,000Hz0.06THD)
185W × 2ch(14.4V 4Ω20 ~ 20,000Hz0.06THD)
Frequency response 10 ~ 40,000Hz(-1dB)
Signal to noise ratio 98dB
Load impedance 4Ω(Bridged connection 4 ~ 8Ω allowable)
Separation 75dB
Damping factor 272(4Ω100Hz)
Low pass filter 40 ~ 150Hz
Low pass cut off slope -12dBoct
Input level 0.2 ~ 6.0V
Fuse 50A × 1
Size ( W × D × H) 344 × 213 × 57 mm
Weight 4.15Kg
