브락스 그래픽 6 스피커세트 제원입니다.
BRAX GRAPHIC 6 TT6 High-End Mid-Bass
Power (RMS) 100 Watt
Impedance 4 Ohm
DC resistance 3,3 Ohm
VAS 21,26 Liter
Sensitivity 88 dB1m
Resonance frequency 49,5 Hz
Frequency range 58 - 2500 Hz
Dimensions (diameter x mounting depth) 166mm x 63mm
BRAX GRAPHIC 6 HT6 High-End Tweeter
Impedance 4 Ohm
DC resistance 3,6 Ohm
Resonance frequency 1300 Hz
Frequency range 2000 - 28000 Hz
Dimensions 45mm

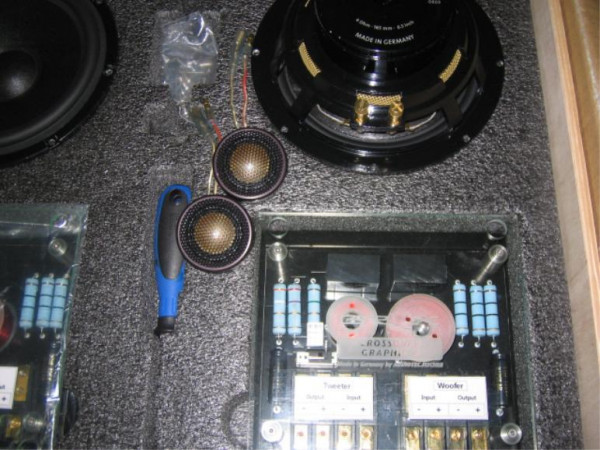

BRAX GRAPHIC 6 C6 Crossover
2-Way Crossover for Bi-Amping
Takeover frequency 2500 Hz
Highpass jumper function -3 dB 0 dB +3 dB
Solid gold plated connectors
Dimensions Height 60 mm, Width 158 mm, Depth 153 mm
사용후기 부탁드립니다.
