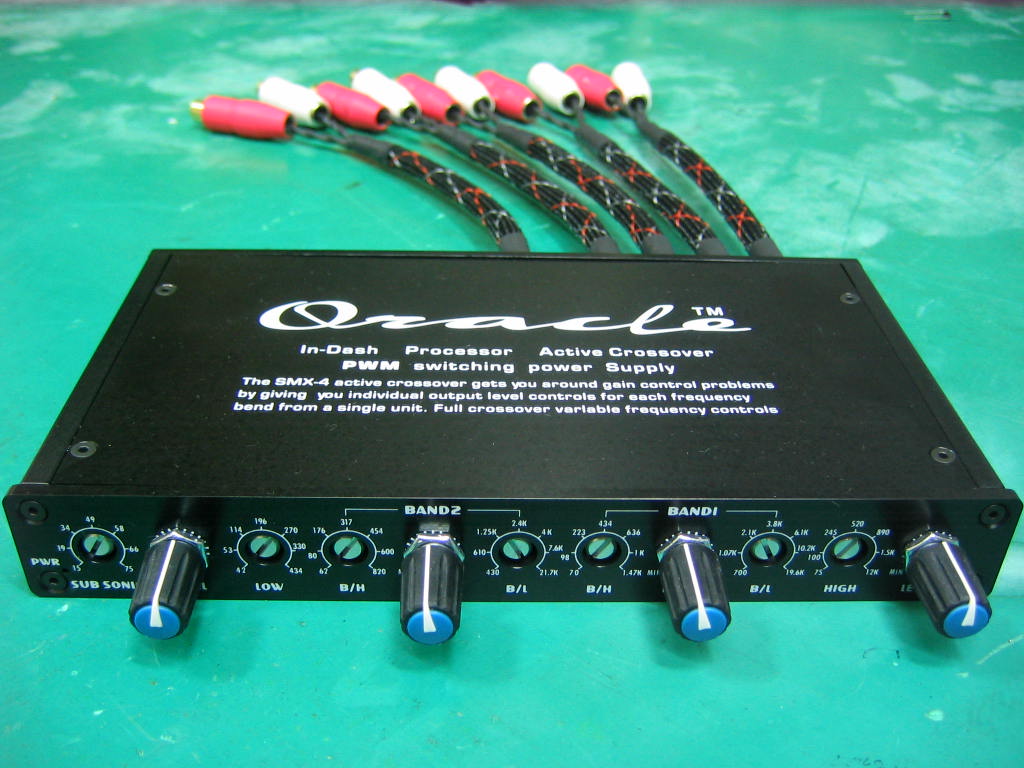

오라클 크로스오버
많은 브랜드의 Cross over 제품군에서 중상급에 속합니다.
중고시세는 대략 70~80만원선에 형성되어 있음.
full 버브라운사 오피 OPA2134적용
버퍼단 OPA2604
SPECIFICATIONS
THD 0.002
Signal-to-Noise 110dB
Signal Level 0 Vrms ~ 10 Vrms
Frequency Response 3Hz-350kHz
Input Voltage DC 11.5 V - 16 V
Channel Separation 70dB
CONTROLS AND INDICATOR ON YOUR SMX-4
SUB-SONIC
frequency range 15Hz ~ 75Hz
Lowpass Controls
slope 12dBOctave
frequency range 42Hz ~ 434Hz
level range zero to unity
Bandpass Controls 2
highpass slope 12dBOctave
highpass frequency range 62Hz ~ 820Hz
lowpass slope 12dBOctave
lowpass frequency range 430Hz ~ 21.7kHz
bandpass level range zero to unity
Bandpass Controls 1
highpass slope 12dBOctave
highpass frequency range 70Hz ~ 1.47kHz
lowpass slope 12dBOctave
lowpass frequency range 700Hz ~ 19.6kHz
bandpass level range zero to unity
Highpass Controls
slope 12dBOctave
frequency range 75Hz ~ 12kHz
level range zero to unity
