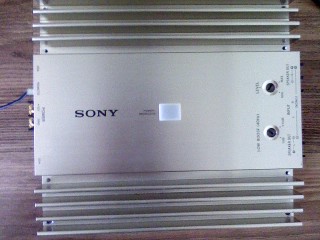

소니명기 XM-260G 앰프
아르고
0
4549
0
0
2008.07.03 10:42
트윗용으로 유명한 XM-5520보다 상급앰프입니다. 해상력또한 매우 좋습니다.
1 - 8 ohms (stereo)
2 - 8 ohms (when used as bridging amplifier)
60 W x 2 (20 - 20,000 Hz, 0.03% THD, at 4 ohms)
120 W x 2 (20 - 20,000 Hz, 0.08% THD, at 2 ohms)
170 W x 2 (20 - 20,000 Hz, 0.10% THD, at 1 ohms)
240 W x 1 (20 - 20,000 Hz, 0.03% THD, at 4 ohms)
340 W x 1 (20 - 20,000 Hz, 0.03% THD, at 2 ohms)
160 W x 2 (at 4 ohms)
300 W x 2 (at 2 ohms)
420 W x 2 (at 1 ohms)
600 W x 1 (at 4 ohms)
840 W x 1 (at 2 ohms)
5 Hz - 100 Hz (+0/-3 dB)
0.003% or less (@ 1 kHz, 4 ohms)
0.2 - 4.0 V
12 V DC car battery (negative ground)
10.5 - 16 V
At rated output: 17 A (4 ohms, 100 W x 2); at 10% THD: 20 A: Remote input: 5 mA
Approx. 230 x 60 x 320 mm (91/8 x 23/8 x 125/8 in) (w/h/d)
Approx. 3.9 kg (8 lb. 9 oz.)
Mounting screws (4); Remote control lead (1)
